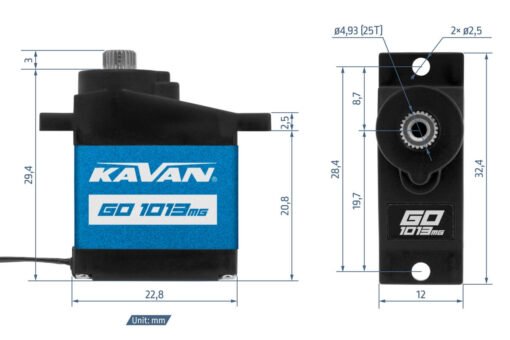

KAVAN GO-1013MG 3,8kg micro servo

$ 53.67

Not VAT exempt - Normal VAT conditions apply
Enquire Now
High Torque programmable digital pico servo with titanium gear and double BB-ed output shaft for small RC model planes, 1:14-1:24 RC cars, 400-450 size helicopters etc. Plastic case with middle aluminium heatsink for perfect cooling under high load.GO-1013MG is programmable using the KAVAN GO servo USB programmer/interface and PC software.Programmable FunctionsServo Angle: Maximal servo rotation angle range setting. The default range is ca 120° within the regular RC signal pulse width range (900~2100 µs); ca 180° within the max. signal pulse width range (500~2500 µs).Servo Neutral: Servo neutral (centre) position setting.Damping Factor: Servo damping setting – adjust the characteristics of the servo when stopping.PWM Power: Adjusts the servo output power. The higher the power, the higher the speed and torque of the servo – indeed also the current consumption will be higher.Sensitivity: Servo sensitivity (Dead Band) setting. The higher sensitivity the narrower the dead band – servo moves only if the change of the signal pulse width is bigger than the dead band width. Too high setting may cause servo jitter in some applications. Range: Ultra High (ca 1 µs dead band) – High (ca 2 µs) – Medium (ca 3 µs) – Low (ca 4 µs)Soft Start: Turns on/off the soft start feature. If ON, the servo goes slowly to the initial position corresponding to the servo signal once the power is switched on.Reverse: Reverses the servo movement direction.Narrow Band: FUTABA SR Mode – only for use with FUTABA radio channels working in the SR mode. Do not turn the option on if you are using a different setting of your FUTABA radio or any other radio.SANWA SSR: SANWA SSR Mode – only for use with SANWA radio channels working in the SSR mode. Do not turn the option on if you are using a different setting of your SANWA radio or any other radio.Lost PPM Protection (Fail-Safe): In the case the control signal from the receiver is lost completely or cannot be decoded correctly (due to interference) the servo can use choose one of three fail-safe modes:(a) Release: No fail-safe protection.(b) Keep Position: Keeps the position corresponding to the last correct control signal.(c) Go Neutral Position: The servo returns to the neutral (1500 µs pulse width) position.Over Load protection: Enables or disables overload protection of the servo in three levels – once the overload conditions last for the pre-set time (in seconds), the output power of the servo is reduced to the corresponding pre-set level (% of the max. power).Default: Restores the factory default setting of the connected servo.Standard input voltage range 4.8-6.0 V (nominal).25T/4.94 mm output shaft.Servo dimensionsMicroServo typeDigitalProgrammableYesThrust at 4.8V [kg/cm]3Thrust at 6.0V [kg/cm]3.8Speed at 4.8V [s/60st.]0.15Speed at 6.0V [s/60st.]0.12Servo gearsTitaniumBall bearings2×High-voltageNoPower supply [V]4.8 – 6Length [mm]22.8Width [mm]12Height [mm]29.4Weight [g]15Intended forAeroplanes,Helicopters,On-road cars,Off-road cars,Boats
